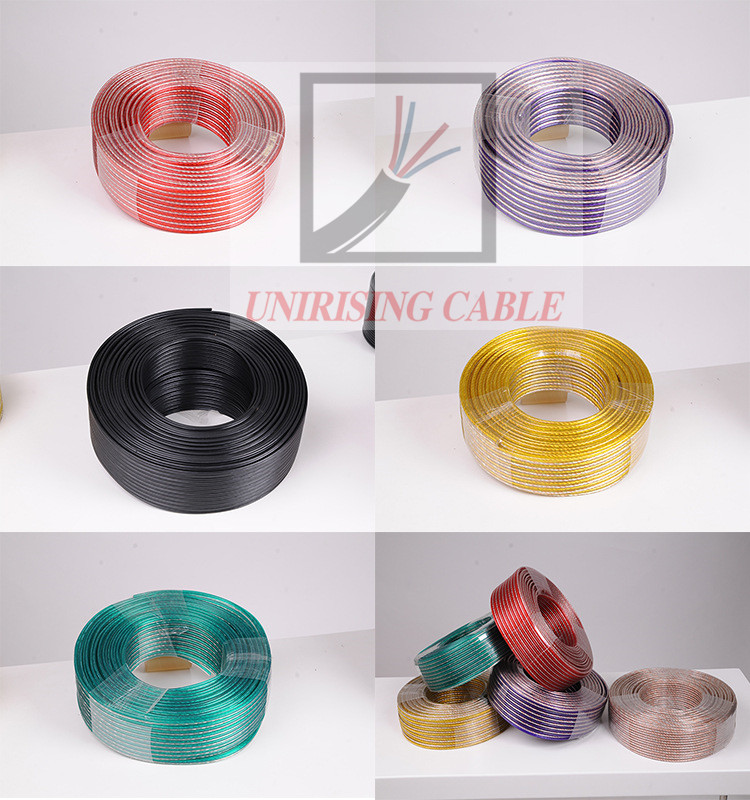

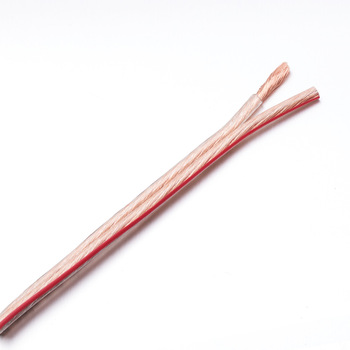

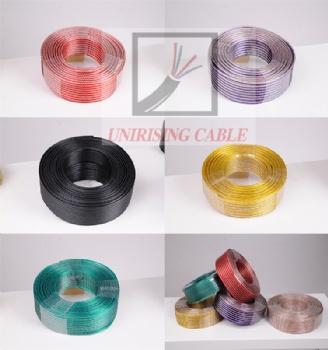

Speaker cable
Product Description
n Application: used for speaker ranges,home theater or audio system,used for connecting power amplifier and broadcasting systems,for transmitting the audio signals amplified by the amplifier
n Structure: 8AWG,10AWG, 12AWG, 14AWG, 16AWG, 18AWG,20AWG or customized
n Conductor Material: OFC/TC/BC/CCA/TCCA/CCS
n Rated voltage: 85V
n Jacket: Transparent PVC;Black&Red PVC,White PVC or customized
n Packing:Box/Coil/Drum/Paper reel/Plastic reel/Wooden reel
| Description | Specification | Diameter(mm) | Weight(kg/km) |
| 2x0.24mm2 | 2x30/0.10 | 2.1x4.3 | 14 |
| 2x0.4mm2 | 2x50/0.10 | 2.3x4.6 | 18 |
| 2x0.5mm2 | 2x64/0.10 | 2.4x4.8 | 20 |
| 2x0.6mm2 | 2x80/0.10 | 2.6x5.3 | 25 |
| 2x0.75mm2 | 2x96/0.10 | 2.7x5.5 | 27 |
| 2x0.8mm2 | 2x100/0.10 | 2.8x5.5 | 28 |
| 2x1mm2 | 2x7x18/0.10 | 3.1x6.1 | 34 |
| 2x1.5mm2 | 2x7x27/0.10 | 3.4x6.8 | 45 |
| 2x2mm2 | 2x7x36/0.10 | 3.8x7.5 | 58 |
| 2x2.5mm2 | 2x7x46/0.10 | 4.0x8.1 | 70 |
| 2x4mm2 | 2x7x72/0.10 | 4.6x9.3 | 100 |
| 2x6mm2 | 2x7x110/0.10 | 5.4x10.9 | 145 |
| 2x0.4mm2 | 2x13/0.20 | 2.3x4.6 | 18 |
| 2x0.5mm2 | 2x16/0.20 | 2.4x4.8 | 20 |
| 2x0.6mm2 | 2x19/0.20 | 2.6x5.2 | 24 |
| 2x0.75mm2 | 2x24/0.20 | 2.7x5.5 | 27 |
| 2x0.8mm2 | 2x26/0.20 | 2.8x5.5 | 29 |
| 2x1mm2 | 2x32/0.20 | 2.9x5.8 | 33 |
| 2x1.5mm2 | 2x48/0.20 | 3.2x6.4 | 44 |
| 2x2mm2 | 2x64/0.20 | 3.4x6.9 | 55 |
| 2x2.5mm2 | 2x7x11/0.20 | 4.0x7.9 | 67 |
| 2x4mm2 | 2x7x18/0.20 | 4.6x9.2 | 100 |
| 2x6mm2 | 2x7x27/0.20 | 5.4x10.8 | 142 |
| 2x20AWG | 2x41/0.12 | 2.4x4.9 | 21 |
| 2x18AWG | 2x65/0.12 | 2.8x5.6 | 29 |
| 2x16AWG | 2x7x15/0.12 | 3.3x6.6 | 22 |
| 2x14AWG | 2x7x23/0.12 | 3.8x7.6 | 28 |
| 2x12AWG | 2x7x37/0.12 | 4.4x8.7 | 36 |
| 2x10AWG | 2x7x59/0.12 | 5.2x10.3 | 48 |
| 2x8AWG | 2x7x95/0.12 | 6.2x12.4 | 195 |
