Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Unirising
Model Number:

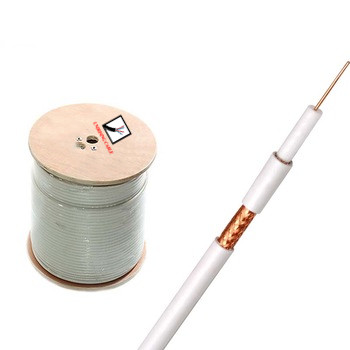

3c-2v coaxial cable
Number of Conductors:
1
Model:
3c-2v coaxial cable
Certification:
CE/RoHS
Inner Conductor:
1.02 Bare Copper / CCS
Dielectric:
4.57- 4.80mm FPE
Out Conductor:
Al Foil +70%, 90%, 95% Braid
Braid Material:
Al-Mg, CCA, BC, TC
Out Jacket:
6.80 - 7.0mm PVC/PE
Color:
White, Black or Customized
Connector:
Fconnecor or BNC
Power:
2x18AWG Copper Or CCA
Electrical Data:
Electrical Characteristics [@68°F. ( 20°C)] | ||||||
Frequency(Mhz) | Nominal values (dB/100M) | Frequency(Mhz) | Nominal values (dB/100M) | Frequency(Mhz) | Nominal values (dB/100M) | |
Attenuation | 5MHZ | 1.90 | 330MHZ | 12.26 | 550MHZ | 16.08 |
55MHZ | 5.25 | 350MHZ | 12.63 | 600MHZ | 16.73 | |
211MHZ | 10.00 | 400MHZ | 13.61 | 750MHZ | 18.54 | |
250MHZ | 10.82 | 450MHZ | 14.43 | 870MHZ | 20.04 | |
300MHZ | 11.64 | 500MHZ | 15.29 | 1000MHZ | 21.49 | |
Min Return Loss(dB) | ≥20 | |||||
Impedance(Ω ) | 75± 3 | |||||
Velocity Rate(%) | 85 | |||||
