SYTI 1Pair --112Pair TELEPHONE CABLE

Telephone Cables

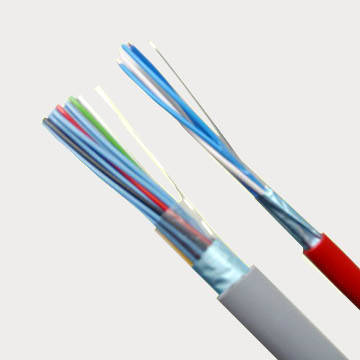

Product Description: SYT	Electraical Characteristics
Tinned or barem, stranded or solid copper conductor,24-20 AWG	Impedance(1MHz):100±20Ω/km
Solid or foam PE insulation	Voltage test:1500Vcc/min
PET foil	Minimum insulation resistance at 20℃1500MΩ.km
AWG25 TC	Mutual capacity of the pairs:＜57.5nF/km
Blue surface mylar alumimum wrapping
Rip cord
Lead free PVC or non-migration PVC jacket
Appliction
For internal wiring of electronic and equipment.
Product Type	Pair	AWG	Insulation Nom.Dia Maximum-mm	Insulation Nom.Thick Min -mm	Shield Coverage	Jacket Nom.Dia-mm	Jacket Nom.Thick Min
SYT1	1	20	1.4	0.16	100%	4.3	0.5
SYT1	2	20	1.4	0.16	100%	6	0.78
SYT1	3	20	1.4	0.16	100%	6.8	0.78
SYT1	2	24	1	0.16	100%	5	0.5
SYT1	3	24	1	0.16	100%	5.1	0.5
SYT1	1	24	1	0.16	100%	3.6	0.4
SYT1	2	24	1	0.16	100%	4.6	0.4
SYT1	3	24	1	0.16	100%	5.1	0.4
SYT1	5	24	1	0.16	100%	6.3	0.6
SYT1	10	24	1	0.16	100%	7.7	0.6
SYT1	21	24	1	0.16	100%	10.3	0.7
SYT1	30	24	1	0.16	100%	11.8	0.7
SYT1	56	24	1	0.16	100%	15	0.8
SYT1	112	24	1	0.16	100%	20.6	0.8
SYT1	224	24	1	0.16	100%	33	0.9
SYT1	1	20	1.4	0.16	100%	4.3	0.4
SYT1	2	20	1.4	0.16	100%	6	0.6
SYT1	3	20	1.4	0.16	100%	6.8	0.6
SYT1	5	20	1.4	0.16	100%	7.9	0.6
SYT1	10	20	1.4	0.16	100%	10.3	0.7
SYT1	21	20	1.4	0.16	100%	13.6	0.8
SYT1	30	20	1.4	0.16	100%	16.1	0.8
SYT1	56	20	1.4	0.16	100%	20.7	0.8
SYT1	112	20	1.4	0.16	100%	28	0.8
