APPLICATION:

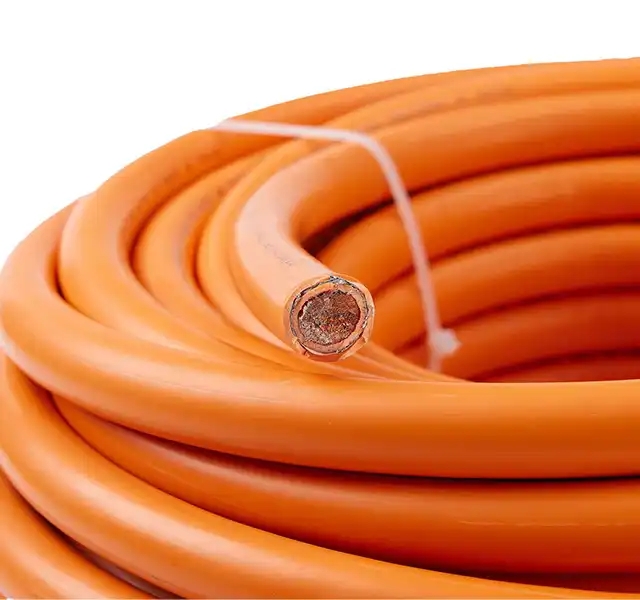

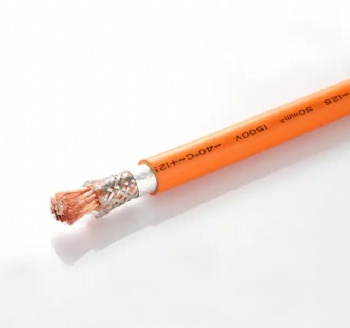

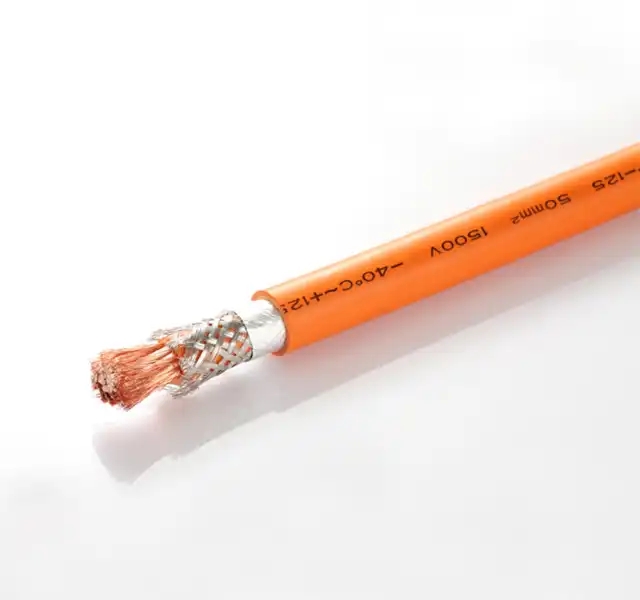

This High Voltage Screened EV Cable is intended for Electric Vehicle battery high voltage system, flexible and easy to bend. This High Voltage electric vehicle screened cable is used for connecting the charging port and the battery, battery inter wiring, the battery, and the engine and other electrical components to carry the electric current power. this type of high voltage electric vehicle screened cable can meet the very high performance for the harsh environment requirements inside the car.

The Screened EV cable is halogen-free and cold resistance, oil resistance, good EMI and EMC electromagnetic interference abilities, flame retardant as it passed vertical flame propagation.

CONSTRUCTION:

Conductor	Annealed Soft Copper wire
Insulation	125℃~150℃ Thermosetting elastomers/150℃ TPE
Screen	Tinned Annealed Soft Copper wire braided
Sheath	125℃~150℃Thermosetting elastomers/150℃TPE

TECHNICAL DATA:

Min. bending radius	5OD, Easy to bend and install
oil resistance, gasoline, diesel oil, and engine oil	Good
Max.Working temperature	ISO6722 Class C:125℃,Class D:150℃
low-temperature toughness	Excellent ,ISO6722,GB/T25085
Working Temperature	-40°C~125°C、-40°C~150°C
Rated Voltage	600V 1000V 1500V

SPECIFICATION:

Cable Size	Nominal Out Diameter	Reference Current	DC Conductor Resistance at 20℃	Temperature	Sheath Color
mm2	mm	Amp	Ω/km	℃	Orange
2.5	5.6	30	7.6	-40~125/150	Orange
4	7.3	40	4.71	-40~125/150	Orange
6	7.7	52	3.14	-40~125/150	Orange
10	9.6	75	1.82	-40~125/150	Orange
16	10.9	100	1.16	-40~125/150	Orange
25	12.9	125	0.74	-40~125/150	Orange
35	14.5	165	0.53	-40~125/150	Orange
50	17	215	0.37	-40~125/150	Orange
70	21	260	0.26	-40~125/150	Orange
95	24	320	0.2	-40~125/150	Orange
120	27	370	0.15	-40~125/150	Orange
