CE ROHS ETL CCTV KX6 Coaxial kx7 coaxial cable

High Quality Coaxial Cable KX6/KX7:

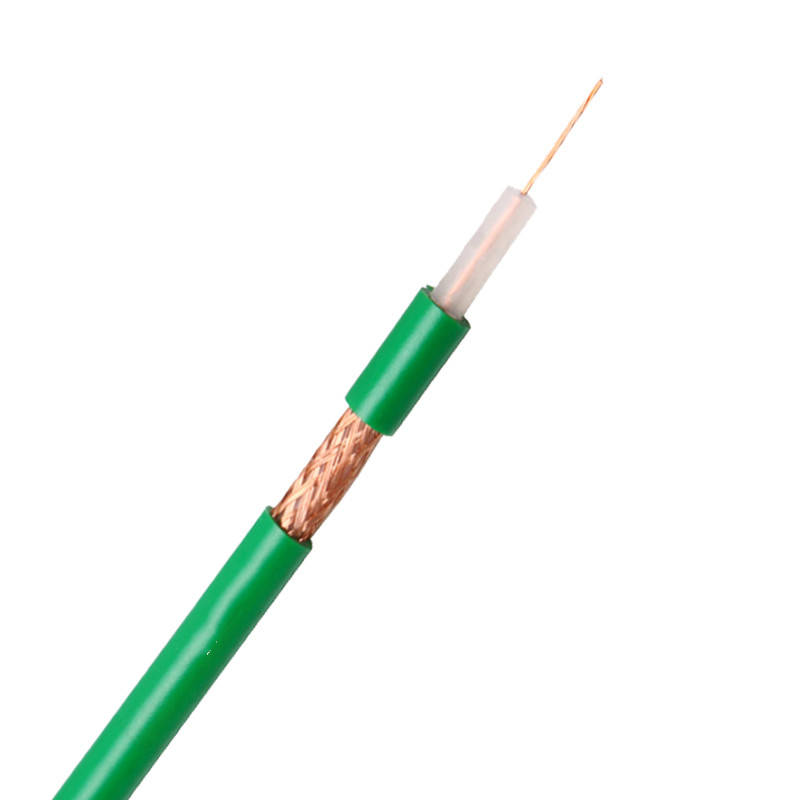

KX6 /KX7 Coaxial Cable:

7* 0.2Copper+3.66SPE +96*0.12CCA/128*0.12CCA+6.1PVC(Green)

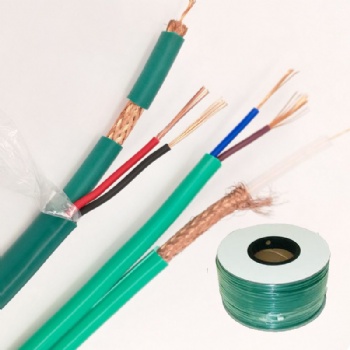

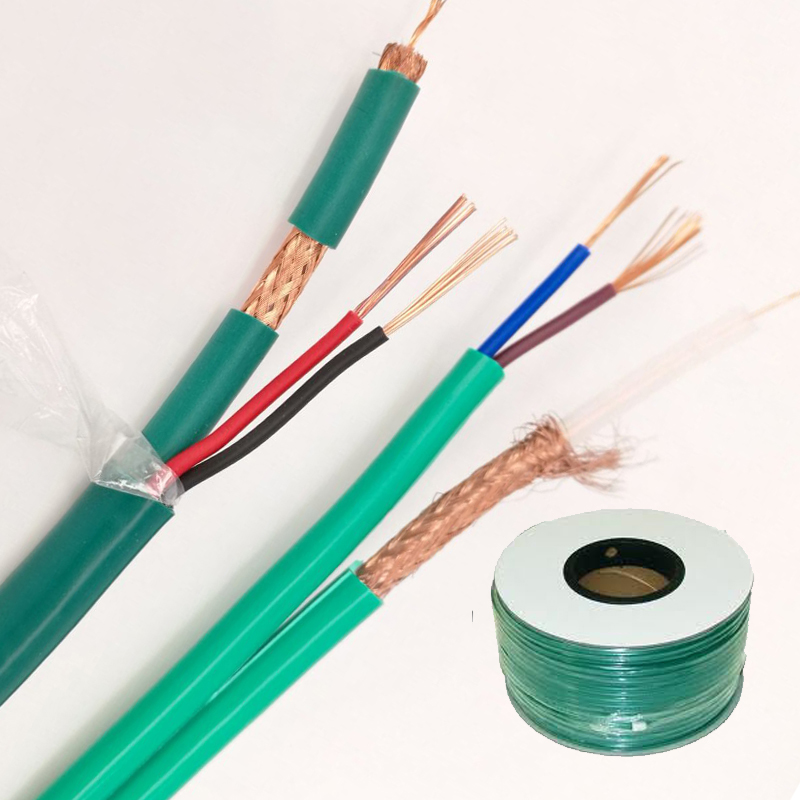

KX6 /KX7 with Power CCTV Cable:

7* 0.2Copper+3.66SPE +96*0.12CCA/128*0.12CCA+6.1PVC(Green)

Power: 7*0.37CCA+1.8PE

ODM & OEM Service Available.

Electrical Data:

Electrical Characteristics [@68°F. ( 20°C)]
	Frequency(Mhz)	Nominal values (dB/100M)	Frequency(Mhz)	Nominal values (dB/100M)	Frequency(Mhz)	Nominal values (dB/100M)
Attenuation	5MHZ	1.90	330MHZ	12.26	550MHZ	16.08
	55MHZ	5.25	350MHZ	12.63	600MHZ	16.73
	211MHZ	10.00	400MHZ	13.61	750MHZ	18.54
	250MHZ	10.82	450MHZ	14.43	870MHZ	20.04
	300MHZ	11.64	500MHZ	15.29	1000MHZ	21.49
Min Return Loss(dB)	≥20
Impedance(Ω )	75± 3
Velocity Rate(%)	85
