RG6 RG59 High Quality Coaxial Cable RG6 to Fiber Converter

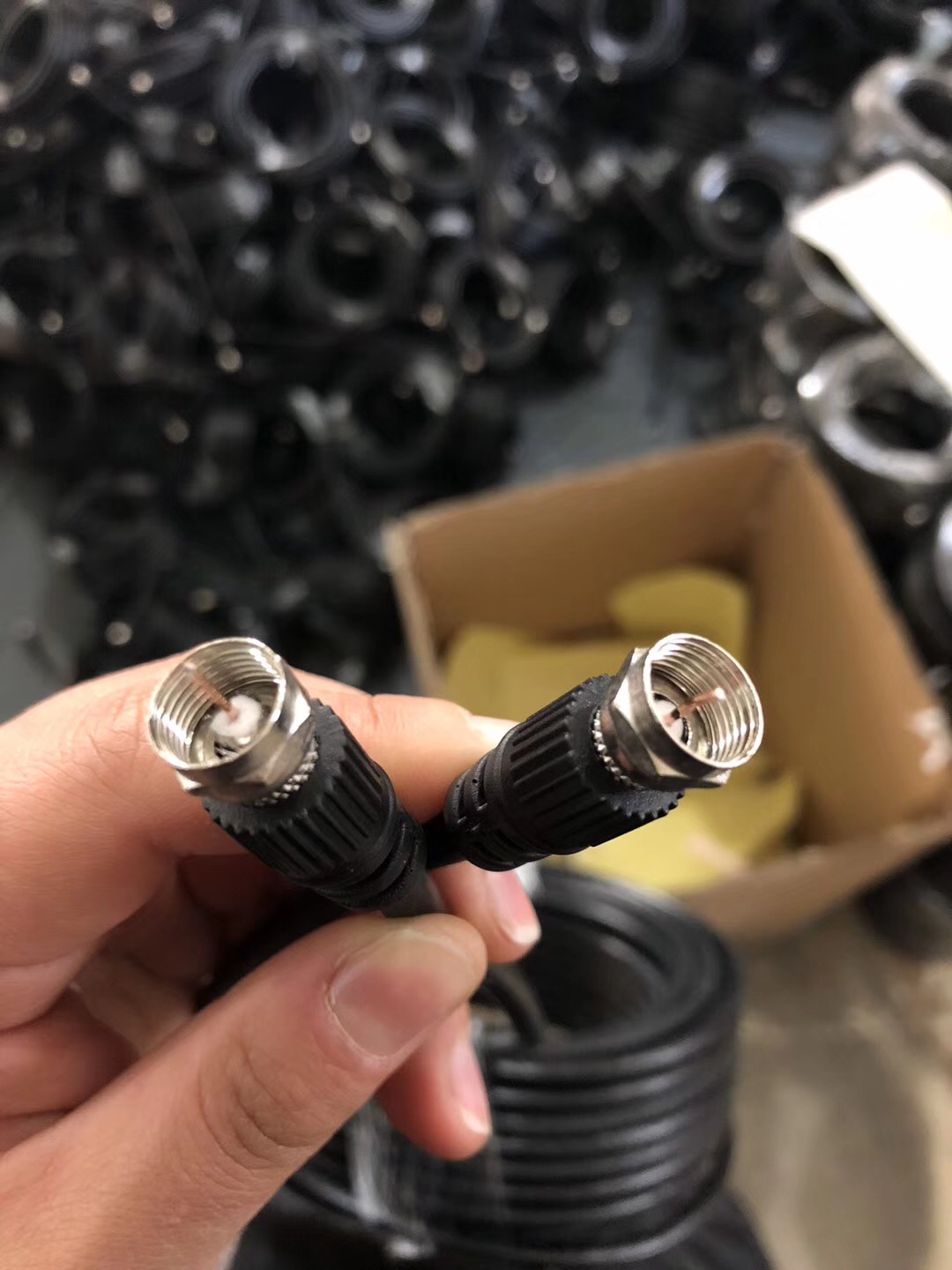

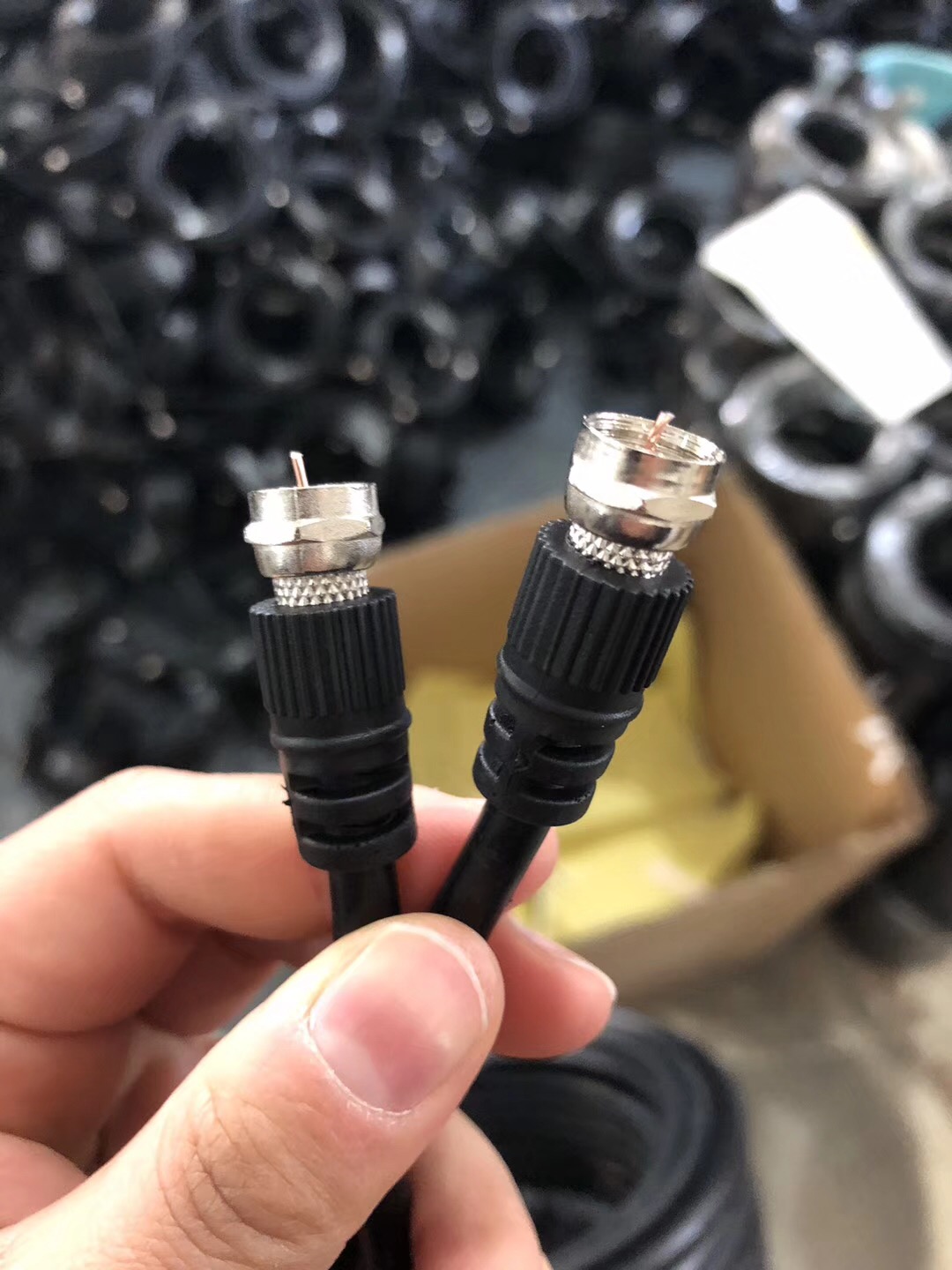

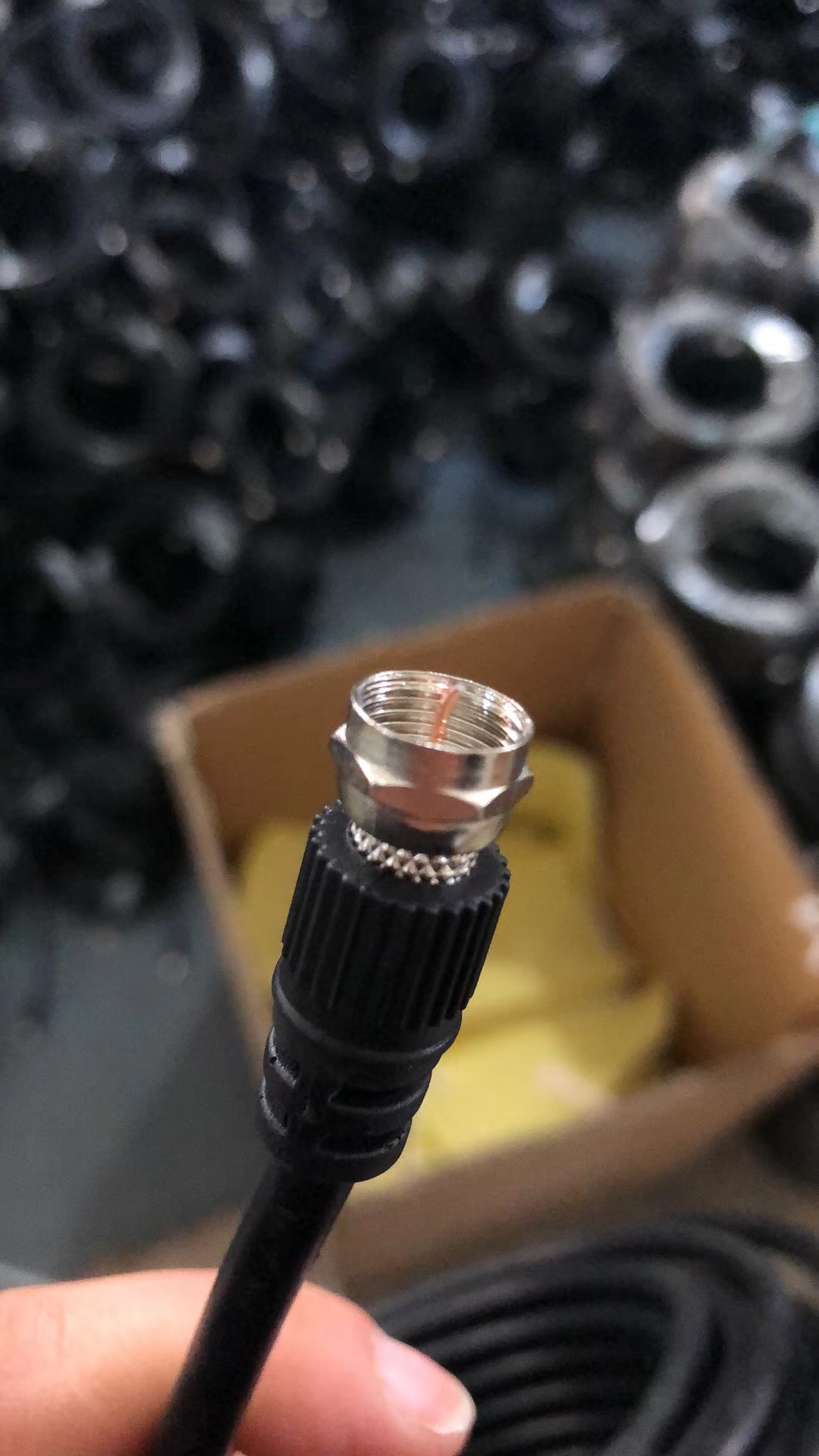

RG6 Coaxial Cable:

RG6 : 1.02CCS+4.57FPE + Al Foil/blue/bonded +96*0.12AL+6.9PVC(Black)

Note: 96-128 net braiding available, 0.12-0.16mm braid wire available

Inner Conductor (mm): 1.02± 0.01

Dielectric (mm): 4.57± 0.10

Outer Conductor (mm): 5.80

Jacket (mm): 6.90± 0.10

ODM & OEM Service Available.

Electrical Data:

Applications For Coaxial Cable RG6:

1) CATV-community antenna television;

2) CCTV-closed-circuit television

3) DBS-direct broadcasting satellite.

1) RG Series Coaxial Cable:

    75OHM:  RG59, RG6, RG7, RG11, RG179, 11VATC, 17VATC, 19VATC, 21VATC, 24VATC, etc;

    50OHM:  RG58, RG8, RG174, RG213, RG214, 4D-FB, 5D-FB, 7D-FB, 8D-FB, 10D-FB, 12D-FB, LMR100,

                   LMR 195, LMR200, LMR240, LMR300, LMR400

2) Combo Cable

    RG59 With DC Power Siamese CCTV Cable

    RG6 With Power Cable, RG6 With Cat5e Cable, RG6 With LAN, Optical Fiber Cable

3) Data Cable:

    Alarm Cable 4 Core, 6 Core,8 Core

    Cat3 LAN Cable

    UTP/FTP/SFTP Cat5, Cat5e, Cat6 LAN Cable, Cat6a, Cat7 LAN Cable

     2 Core, 4 Core, 8 Core Telephone Cable

4) Other Cable:

     2 Core, 4 Core Speaker Cable

     Red & Black Speaker Cable, Transparent Speaker Cable, Sheathed Speaker Cable
