RG11 withr power Coaxial Cable:

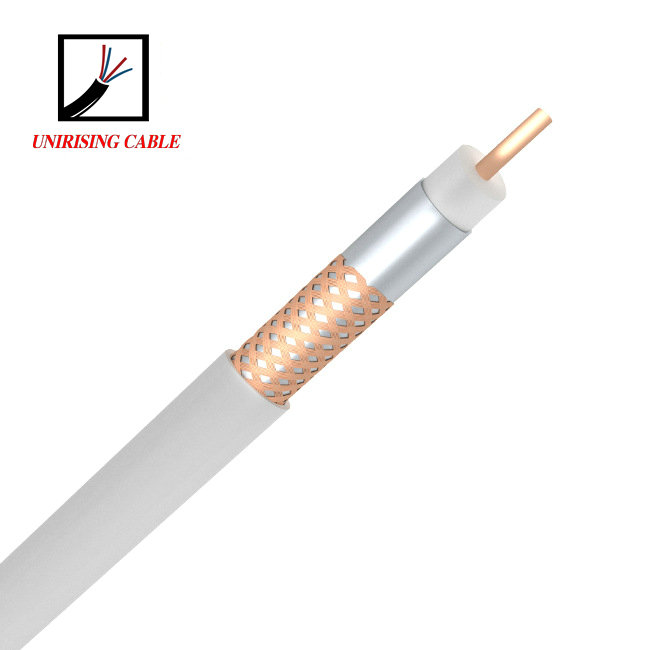

RG11: 1.63CCS+7.11FPE + Al Foil/blue/bonded +96*0.12AL+10.16PVC(Black

Note: 96-128 net braiding available, 0.12-0.16mm braid wire available

Inner Conductor (mm):1.63± 0.01

Dielectric (mm): 7.11± 0.1

Jacket (mm): 10.16± 0.10


Electrical Data:

Electrical Characteristics [@68°F. ( 20°C)]
	Frequency(Mhz)	Nominal values (dB/100M)	Frequency(Mhz)	Nominal values (dB/100M)	Frequency(Mhz)	Nominal values (dB/100M)
Attenuation	5MHZ	1.90	330MHZ	12.26	550MHZ	16.08
	55MHZ	5.25	350MHZ	12.63	600MHZ	16.73
	211MHZ	10.00	400MHZ	13.61	750MHZ	18.54
	250MHZ	10.82	450MHZ	14.43	870MHZ	20.04
	300MHZ	11.64	500MHZ	15.29	1000MHZ	21.49
Min Return Loss(dB)	≥20
Impedance(Ω )	75± 3
Velocity Rate(%)	85
