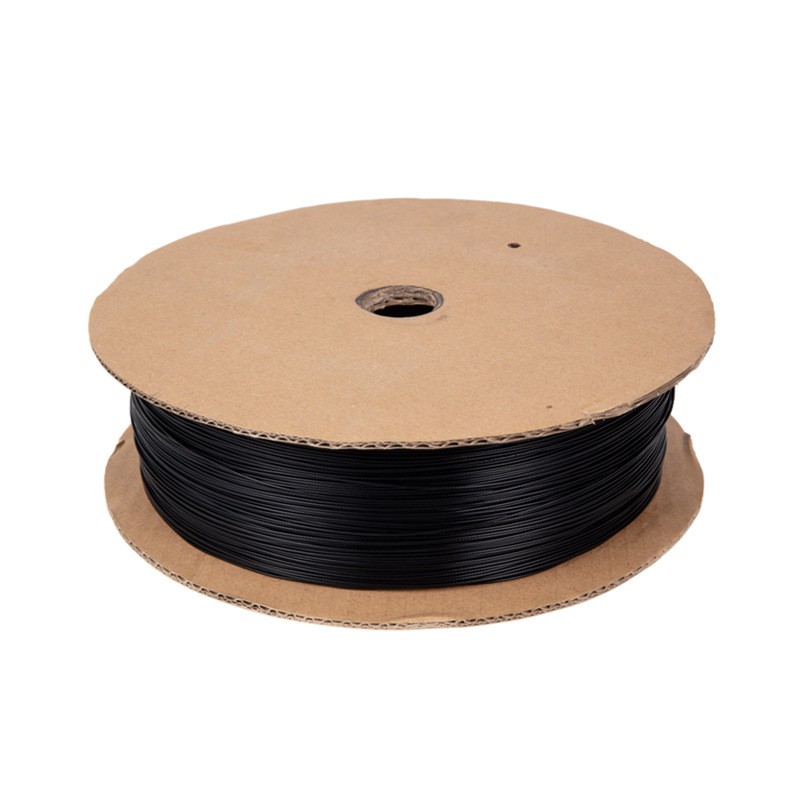

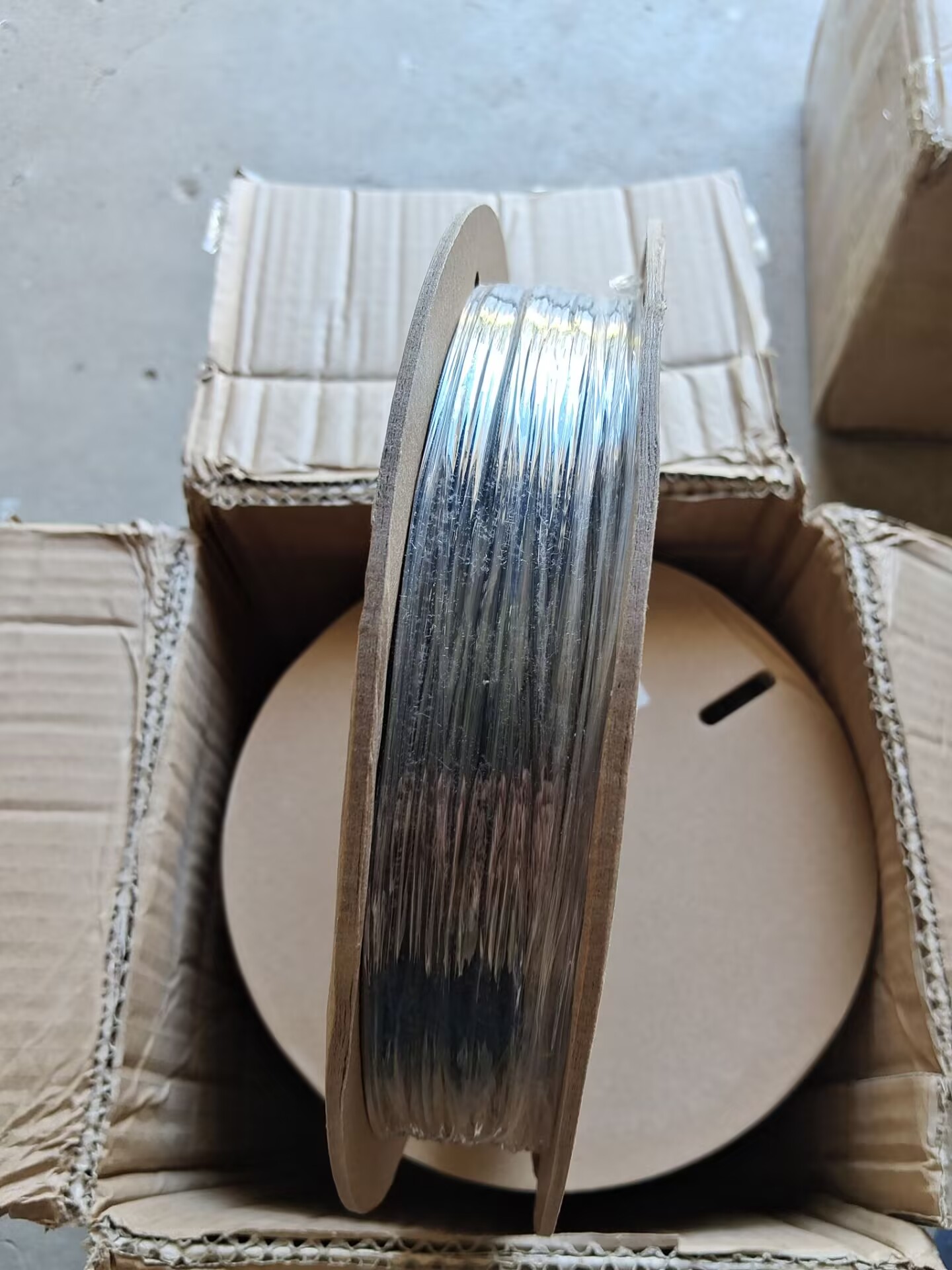

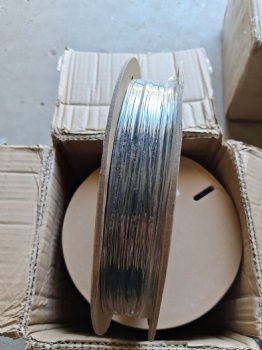

RF1.13 Coaxial Cable RF0.81 RF0.64 RF1.37 Silver Plated Copper 50ohm

RF series coaxial cable

Specification of cable:

Item		NO	Materials and size
Inner conductor	Material	/	Silver plated copper wire
	Composition	mm	7/0.08±0.003
	OD	mm	Φ0.24
Insulation	Material	/	FEP(200 -) FEP(200 degrees of fluorinated ethylene propylene resin)
	Thickness	mm	0.21
	OD	mm	Φ0.68±0.03
	Color	/	transparent color
Outer conductor	Material	/	Silver copper wire
	Form	/	Weave
	Density	%	93%(26(Mesh); 80(Coding 5*16/0.05mm))
	OD	mm	Φ0.88±0.05
Jacket	Material	/	FEP(200-) FEP(200 degrees of fluorinated ethylene propylene resin)
	Thickness	mm	0.125
	OD	mm	Φ1.13±0.05
	color of sheath	/	() Gray or black(Can also be processed according to customer requirements)
