Power Cable or PVC cable

power cord manufactuer power cord with worldwide certificates power cords extesion cords VDE

EMAIL INQUIRY

Specification

Male Plug	Europe CEE7/7 Schuko
Female Receptacle	IEC60320 C5 Europe
Amperage	Up to 10A
Voltage	Up to 250V AC
Outer Mold Material	PVC
Blade Material	Nickel coated Brass
Color	Custom color available
Cable Length	Custom length available
Certifications	CEBEC,DEMKO,FI,KEMA,NEMKO,NF,OVE,SEMKO,SEMKO,TUV,VDE,CE
Environmental Certifications	RoHS, REACH
Testing	100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.

Available Wire Styles

H03VV-F 3G 0,5 mm² max.2m
H03VV-F 3G 0,75 mm²
H05VV-F 3G 0,75 mm² max.2m
H05VV-F 3G 1,0 mm² H05VV-F 3G 1,5 mm²
H05RR-F 3G 0,75 mm² max.2m
H05RR-F 3G 1,0 mm² H05RR-F 3G 1,5 mm²
H05RN-F 3G 0,75 mm² max.2m
H05RN-F 3G 1,0 mm²
H07RN-F 3G 1,0 mm² H07RN-F 3G 1,5 mm²
H03RT-H 3G 0,75 mm² max.2m
H03RT-H 3G 1,0 mm²
H05V2V2-F 3G 0,75 mm² max.2m
H05V2V2-F 3G 1,0 mm

Packing & Delivery

Packaging Details：Standard Exporting Carton Box

Quantity according to the size an length of the goods.

Delivery: 15-25 days after the payment.

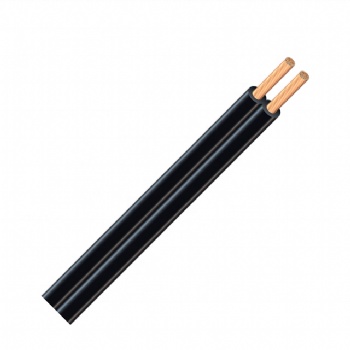

[Next：10AWG 12AWG 14AWG Flexible Flat parallel twin SPT wires]→
