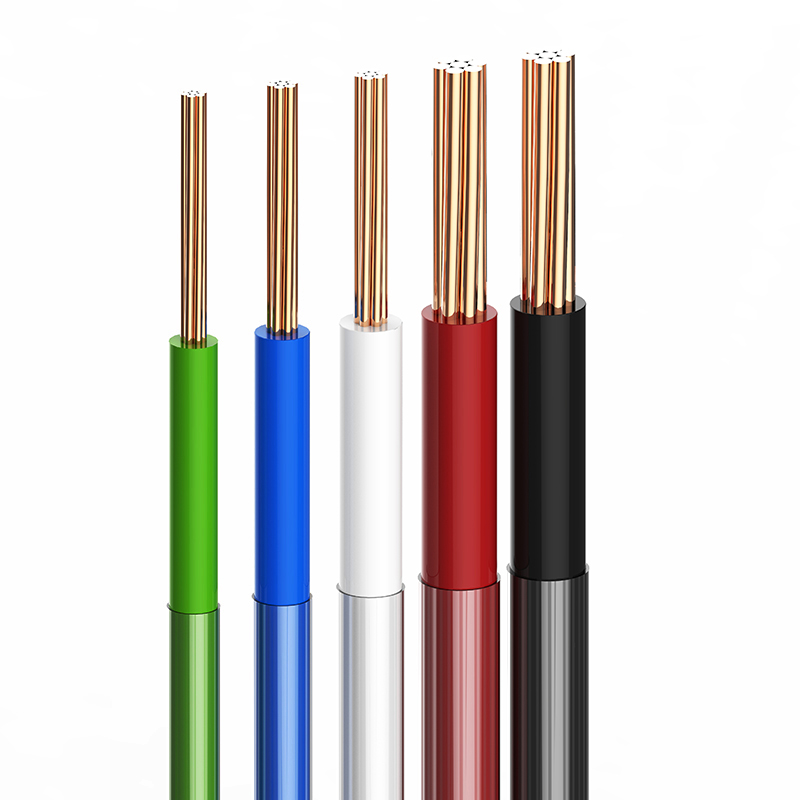

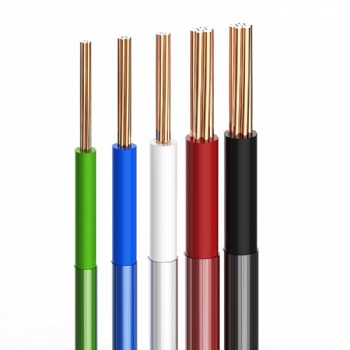

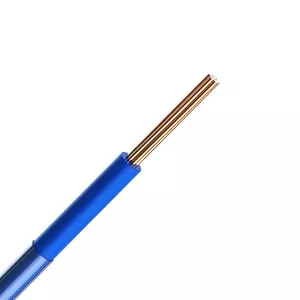

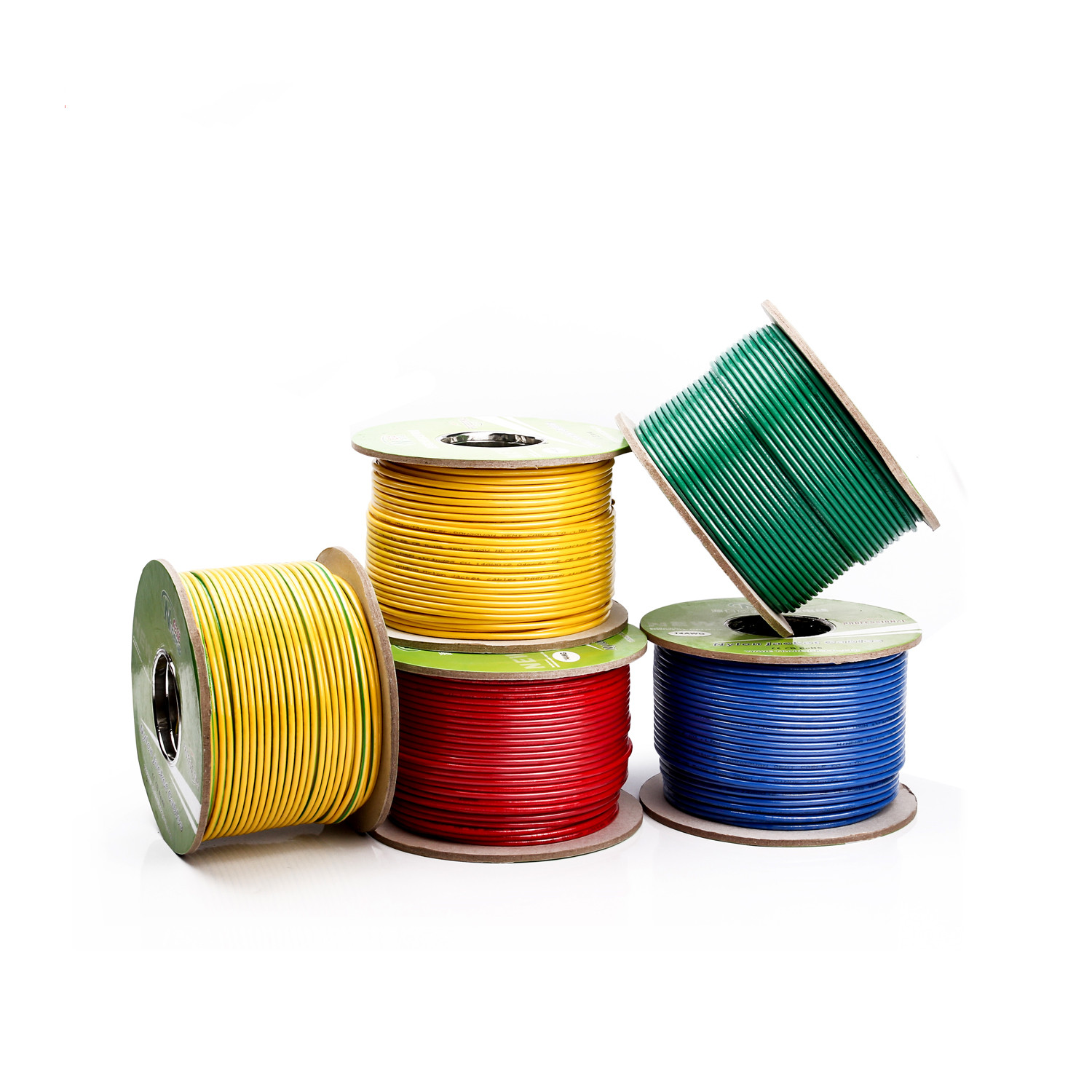

THWN-THHN Cable

EMAIL INQUIRY

THHN Wire has a conductor of soft drawn bare copper.
· THHN Wire has primary insulation of PVC with NYLON jacket.
· USA listed Stds. 83 & 1063 as: Type THHN Wire 90°C in dry locations, Type THWN Wire 75°C in wet locations.
· Gasoline and oil resistant II. Type MTW 90°C Machine Tool Wire (stranded only) 105°C AWM, 80°C where exposed to oil.
· CSA approval available upon request for the building wire.

SIZE	Conductor structure ±0.01mm	cable diameter±0.1mm	jacket material	insulation material	approx.cross sectionarea (mm2）	PVC insulation thickness ±0.05mm	Nylon thickness±0.05mm	approx.weight(kg/km)
8AWG	19/0.75	6.2	NYLON	PVC	8.39	1.0	0.2	104.35
9AWG	19/0.67	5.8	NYLON	PVC	6.7	1.0	0.2	86.24
10AWG	19/0.59	5.4	NYLON	PVC	5.19	1.0	0.2	69.95
11AWG	19/0.53	4.7	NYLON	PVC	4.19	0.8	0.2	54.75
12AWG	19/0.47	4.4	NYLON	PVC	3.3	0.8	0.2	45.00
13AWG	7/0.69	4.1	NYLON	PVC	2.62	0.8	0.2	37.5
14AWG	7/0.61	3.9	NYLON	PVC	2.05	0.8	0.2	31.06
15AWG	7/0.55	3.5	NYLON	PVC	1.66	0.7	0.2	25.15
16AWG	7/0.49	3.3	NYLON	PVC	1.32	0.7	0.2	21.22
18AWG	7/0.38	3.0	NYLON	PVC	0.79	0.7	0.2	14.98

THHN Building Wire is general purpose wiring in accordance with the NEC.

The building wire is rated at 600 volts for installation in conduit or other recognized raceway cable, cables, THHN cable, THWN
cable, FVN cable, digital cable,Electric wire, Electrical wires, Electric cable, Electrical cable, Electrical cables, PVC
Insulated and Sheathed Cable, PVC insulated cable, insulated cable, instrumentation cable, power cable, stranded cable, double
insulated, flat cable, CCC approved, AL conductor, installation wire, flexible wire, flex cable, single core, multi core cable,
fire resistant, XLPE, XLPE cable, LSZH, LSOH,
LSZH cable.
